Double Cone Blender

Double Cone Blender

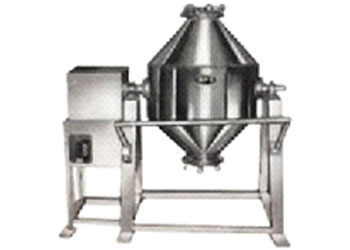

The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously.

Salient Features
- The conical shape at both ends enables uniform mixing and easy discharge.
- The cone is statically balanced to avoid any excessive load on the gear box and motor.
- While the power can be loaded into the cone through a wider opening, it can be discharged    through a butterfly or slide valve.
- Depending upon the characteristic of the product, paddle type baffles can be provided on    the shaft for better mixing.
- The contact parts are made of either S.S.304 or S.S.316.
- Flame proof electricals can be provided as optional.
- Capacity available 20 L to 3000 L.
- The working capacity can be exchanged to 70 % of gross capacity by validated study.
- ‘Slant’ designed (off centre) CLIN CONE BLENDER is also available.
- Variable speed option available 70 %.
- Cantilever model on request.
- Dust free bin charging system on request.


Applications
- Dry powder to powder mixing for tablets and capsules formulations.
- Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet    granules.


Capacity : 10 Ltrs. to 5000 Ltrs.
